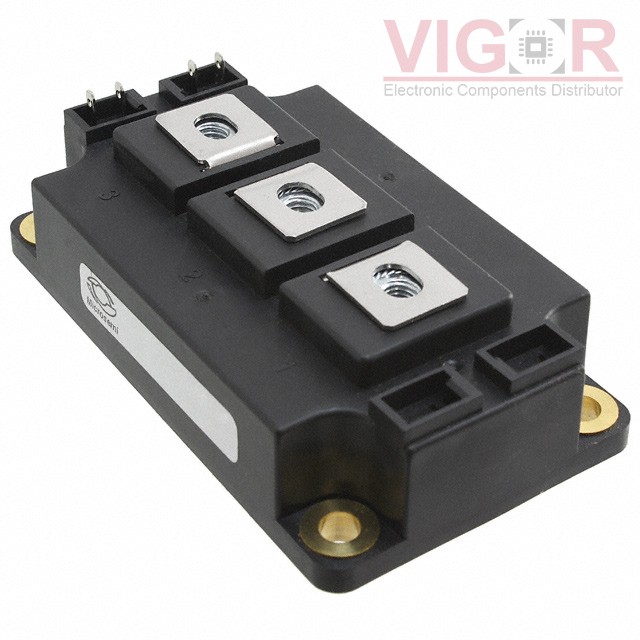

APTMC120AM16CD3AG

Part No :: APTMC120AM16CD3AG

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET 2N-CH 1200V 131A D3

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTMC120AM16CD3AG PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of APTMC120AM16CD3AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTMC120AM16CD3AG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	131A (Tc)
Rds On (Max) @ Id, Vgs:	20mOhm @ 100A, 20V
Vgs(th) (Max) @ Id:	2.2V @ 5mA (Typ)
Gate Charge (Qg) (Max) @ Vgs:	246nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	4750pF @ 1000V
Power - Max:	625W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	D-3 Module
Supplier Device Package:	D3
