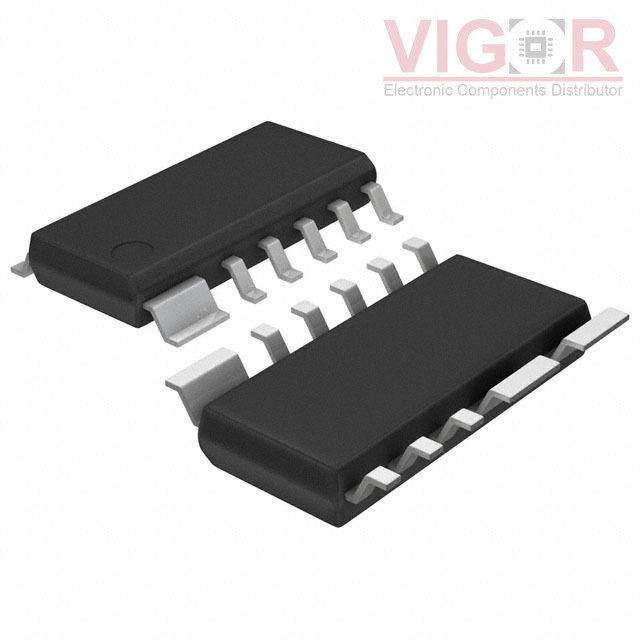

FDQ7698S

Part No :: FDQ7698S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4617969

Description: MOSFET 2N-CH 30V 12A/15A 14SOIC

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDQ7698S PDF

Current price of FDQ7698S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDQ7698S Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	12A, 15A
Rds On (Max) @ Id, Vgs:	7.5mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	17nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	1324pF @ 15V
Power - Max:	1.1W, 1.3W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
Supplier Device Package:	14-SO
