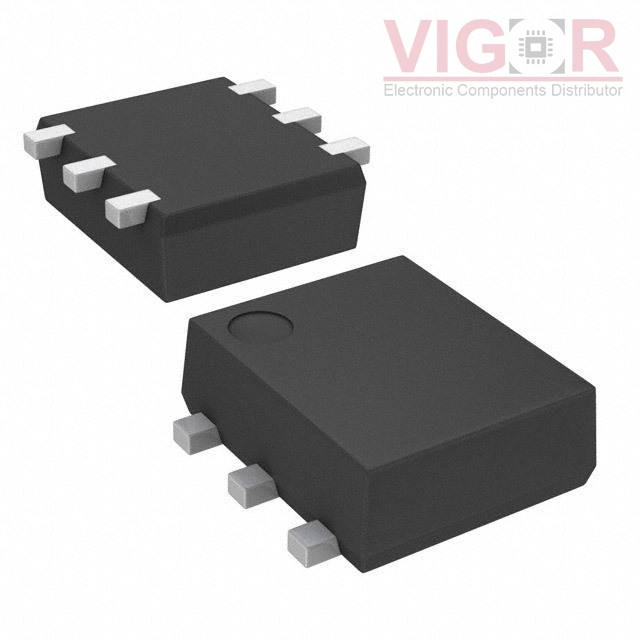

MTM763200LBF

Part No :: MTM763200LBF

Manufacturer: Panasonic

VIGOR # :: 4617991

Description: MOSFET N/P-CH 20V WSMINI6-F1

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MTM763200LBF PDF

Current price of MTM763200LBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MTM763200LBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.9A, 1.2A
Rds On (Max) @ Id, Vgs:	105mOhm @ 1A, 4V
Vgs(th) (Max) @ Id:	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	280pF @ 10V
Power - Max:	700mW
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Flat Leads
Supplier Device Package:	WSMini6-F1-B

Please confirm the specifications of the products when ordering.
