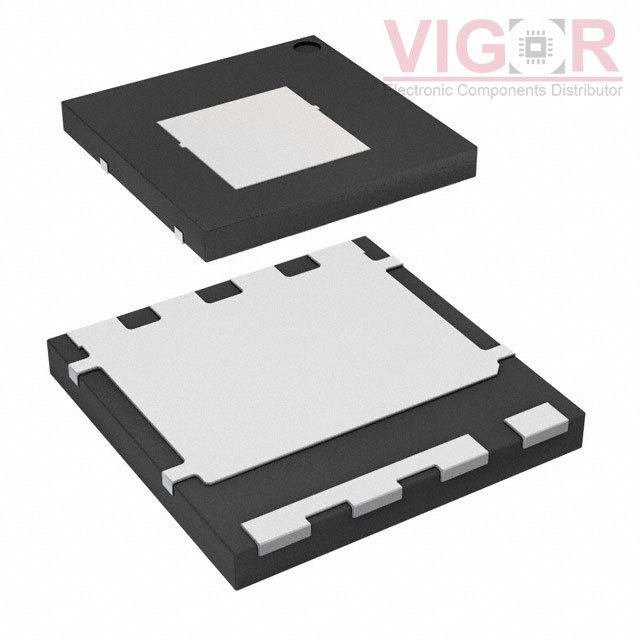

FDMT80040DC

Part No :: FDMT80040DC

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 40V 420A 8PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMT80040DC PDF

Availability: 2275 pieces

Current price of FDMT80040DC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMT80040DC Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	420A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	0.56mOhm @ 64A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	338 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	26110 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	156W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-PQFN (8x8)
Package / Case:	8-PowerVDFN
