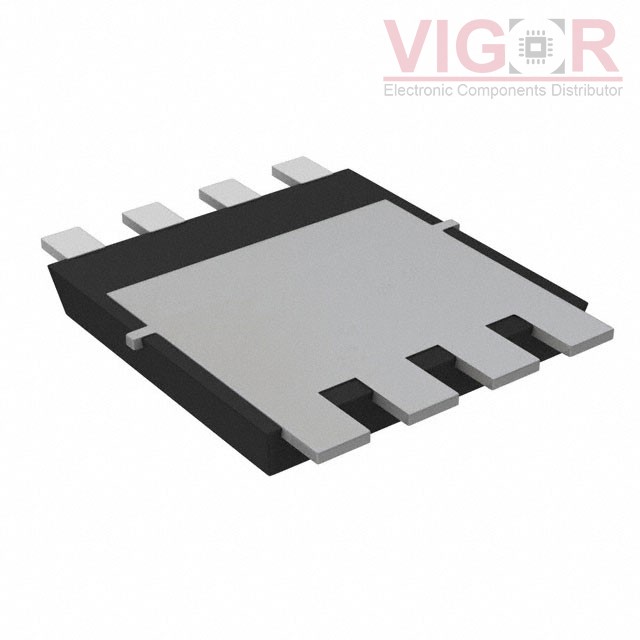

TPWR8004PL,L1Q

Part No :: TPWR8004PL,L1Q

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 40V 150A 8DSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPWR8004PL,L1Q PDF

Availability: 772 pieces

Unit Price: ~~$3.15000~~

Current price of TPWR8004PL,L1Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPWR8004PL,L1Q Specifications

Type	Description
Series:	U-MOSIX-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	150A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	0.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	103 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	9600 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta), 170W (Tc)
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DSOP Advance
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
