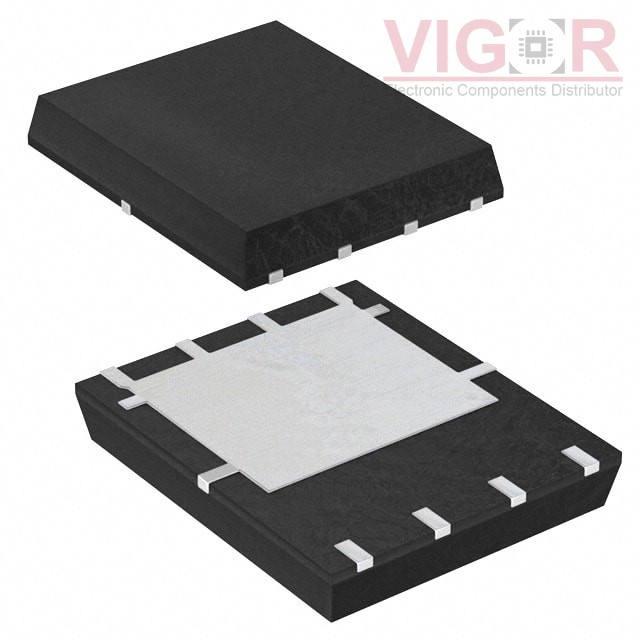

RS1L120GNTB

Part No :: RS1L120GNTB

Manufacturer: ROHM Semiconductor

Description: MOSFET N-CH 60V 12A/36A 8HSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RS1L120GNTB PDF

Availability: 1055 pieces

Current price of RS1L120GNTB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RS1L120GNTB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta), 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	12.7mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:	2.7V @ 200µA
Gate Charge (Qg) (Max) @ Vgs:	26 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1330 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-HSOP
Package / Case:	8-PowerTDFN
