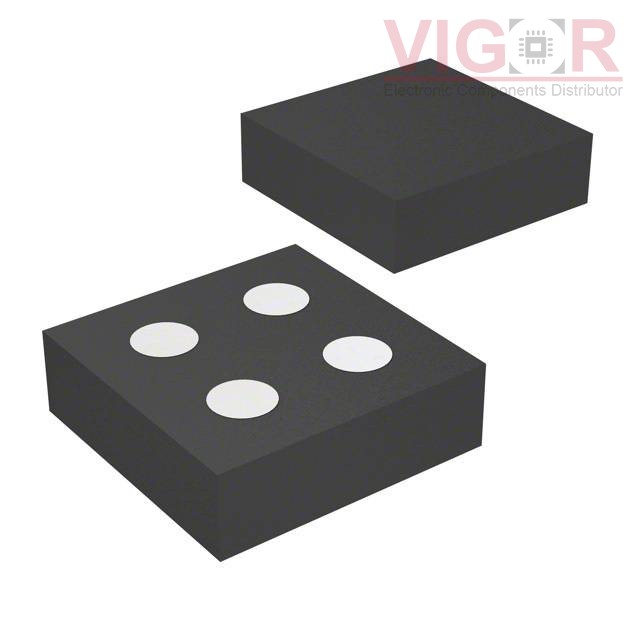

AOC2421

Part No :: AOC2421

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET P-CH 8V 2.5A 4ALPHADFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AOC2421 PDF

Availability: 0 pieces

Current price of AOC2421 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AOC2421 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	8 V
Current - Continuous Drain (Id) @ 25°C:	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.2V, 2.5V
Rds On (Max) @ Id, Vgs:	62mOhm @ 1.5A, 2.5V
Vgs(th) (Max) @ Id:	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	13 nC @ 4.5 V
Vgs (Max):	±5V
Input Capacitance (Ciss) (Max) @ Vds:	752 pF @ 4 V
FET Feature:	-
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-AlphaDFN (0.97x0.97)
Package / Case:	4-SMD, No Lead
