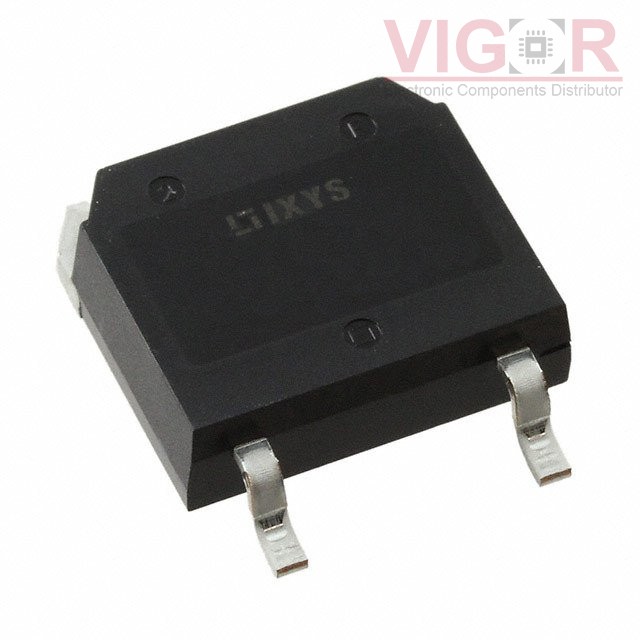

IXFT120N30X3HV

Part No :: IXFT120N30X3HV

Manufacturer: Wickmann / Littelfuse

Description: MOSFET N-CH 300V 120A TO268HV

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IXFT120N30X3HV PDF

Availability: 450 pieces

Current price of IXFT120N30X3HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IXFT120N30X3HV Specifications

Type	Description
Series:	HiPerFET™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	300 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	11mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs:	170 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	10.5 nF @ 25 V
FET Feature:	-
Power Dissipation (Max):	735W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-268HV
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
