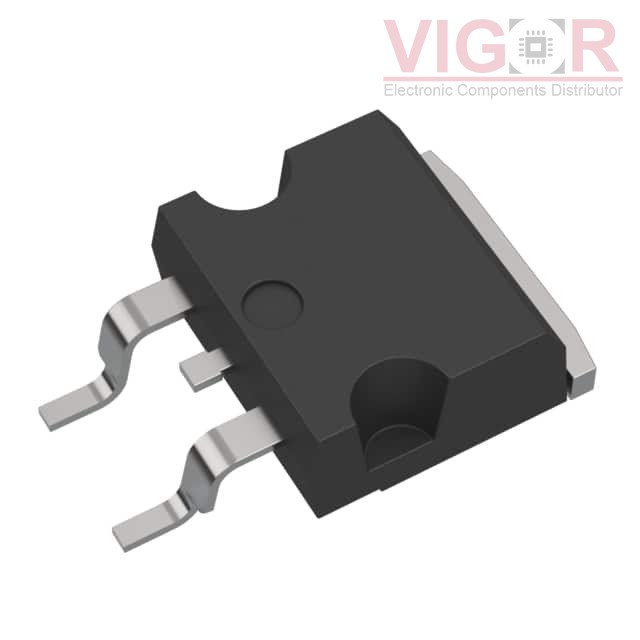

STH140N6F7-2

Part No :: STH140N6F7-2

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 60V 80A H2PAK-2

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STH140N6F7-2 PDF

Availability: 0 pieces

Current price of STH140N6F7-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STH140N6F7-2 Specifications

Type	Description
Series:	DeepGATE™, STripFET™ VII
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	3mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	40 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2700 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	158W (Tc)
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H2Pak-2
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
