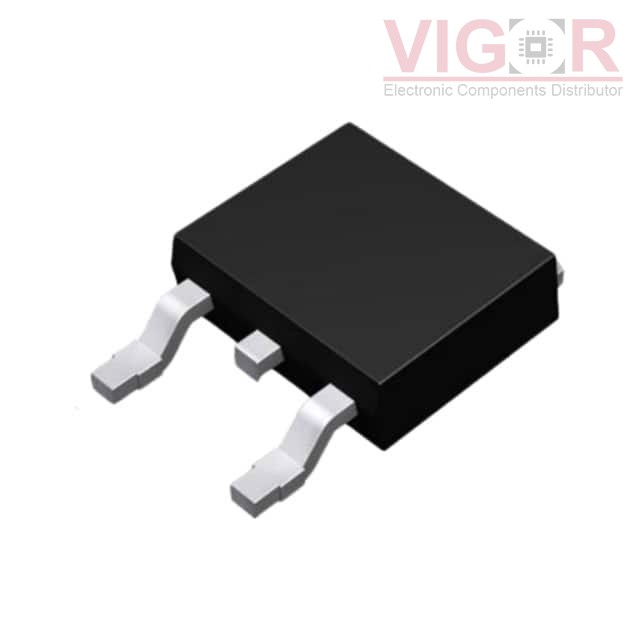

RD3G01BATTL1

Part No :: RD3G01BATTL1

Manufacturer: ROHM Semiconductor

Description: PCH -40V -15A POWER MOSFET - RD3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RD3G01BATTL1 PDF

Availability: 0 pieces

Current price of RD3G01BATTL1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RD3G01BATTL1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	39mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	19.3 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1030 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	25W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
