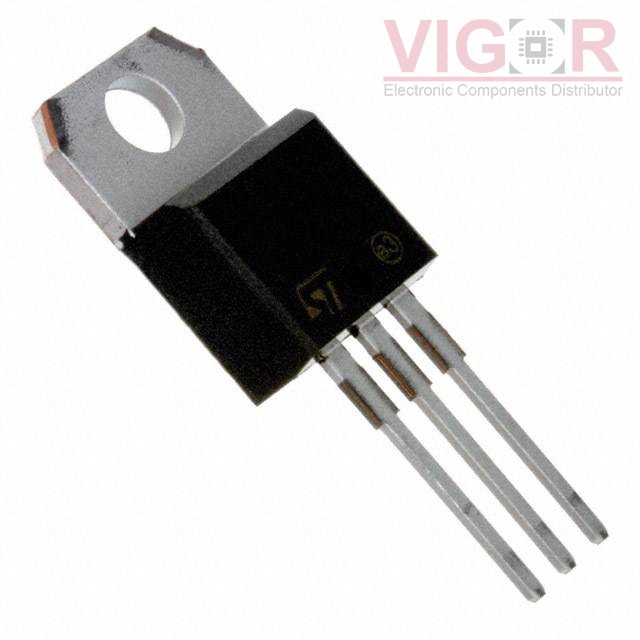

STP200N3LL

Part No :: STP200N3LL

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 30V 120A TO220

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STP200N3LL PDF

Availability: 1867 pieces

Current price of STP200N3LL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STP200N3LL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.4mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	53 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5200 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	176.5W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220
Package / Case:	TO-220-3
