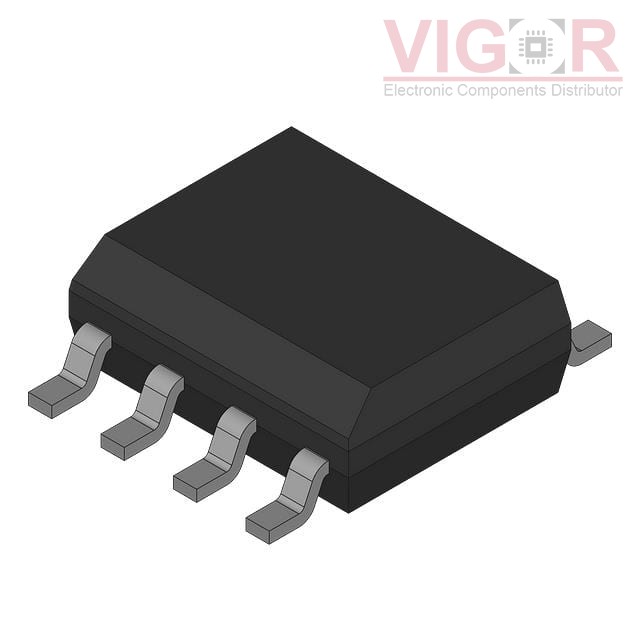

HAT2173N-EL-E

Part No :: HAT2173N-EL-E

Manufacturer: VIGOR

Description: MOSFET N-CH 100V 25A 8LFPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: HAT2173N-EL-E PDF

Availability: 24880 pieces

Current price of HAT2173N-EL-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HAT2173N-EL-E Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	15.3mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id:	6V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:	61 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	4.35 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	30W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-LFPAK-iV
Package / Case:	8-PowerSOIC (0.154", 3.90mm Width)
