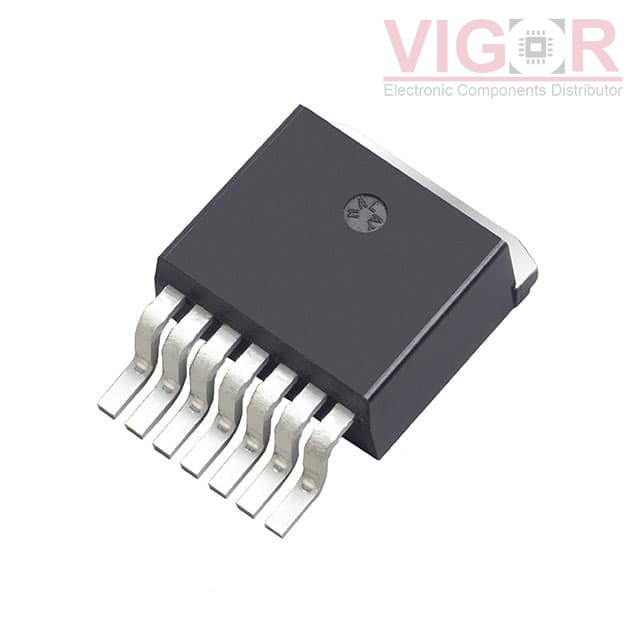

NVBG020N090SC1

Part No :: NVBG020N090SC1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: SICFET N-CH 900V 9.8A/112A D2PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NVBG020N090SC1 PDF

Availability: 1583 pieces

Current price of NVBG020N090SC1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NVBG020N090SC1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	900 V
Current - Continuous Drain (Id) @ 25°C:	9.8A (Ta), 112A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	28mOhm @ 60A, 15V
Vgs(th) (Max) @ Id:	4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:	200 nC @ 15 V
Vgs (Max):	+19V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	4415 pF @ 450 V
FET Feature:	-
Power Dissipation (Max):	3.7W (Ta), 477W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
