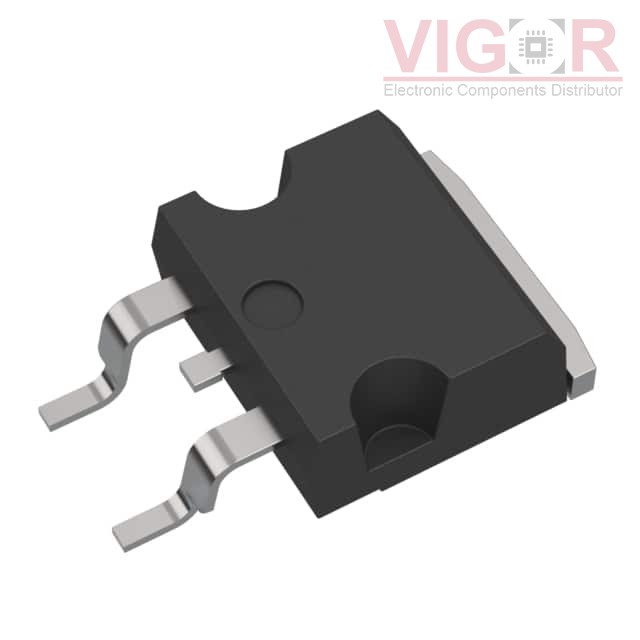

SCT20N120H

Part No :: SCT20N120H

Manufacturer: STMicroelectronics

Description: SICFET N-CH 1200V 20A H2PAK-2

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SCT20N120H PDF

Availability: 36 pieces

Current price of SCT20N120H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCT20N120H Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	20V
Rds On (Max) @ Id, Vgs:	290mOhm @ 10A, 20V
Vgs(th) (Max) @ Id:	3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	45 nC @ 20 V
Vgs (Max):	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	650 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	175W (Tc)
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H2Pak-2
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
