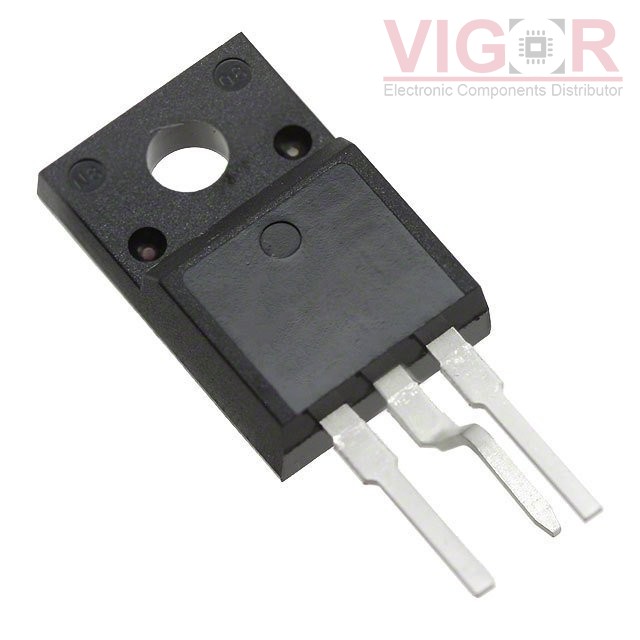

FQPF5N50CYDTU

Part No :: FQPF5N50CYDTU

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 500V 5A TO220F-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FQPF5N50CYDTU PDF

Availability: 7384000 pieces

Current price of FQPF5N50CYDTU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FQPF5N50CYDTU Specifications

Type	Description
Series:	QFET®
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	500 V
Current - Continuous Drain (Id) @ 25°C:	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.4Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	625 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	38W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220F-3 (Y-Forming)
Package / Case:	TO-220-3 Full Pack, Formed Leads

Please confirm the specifications of the products when ordering.
