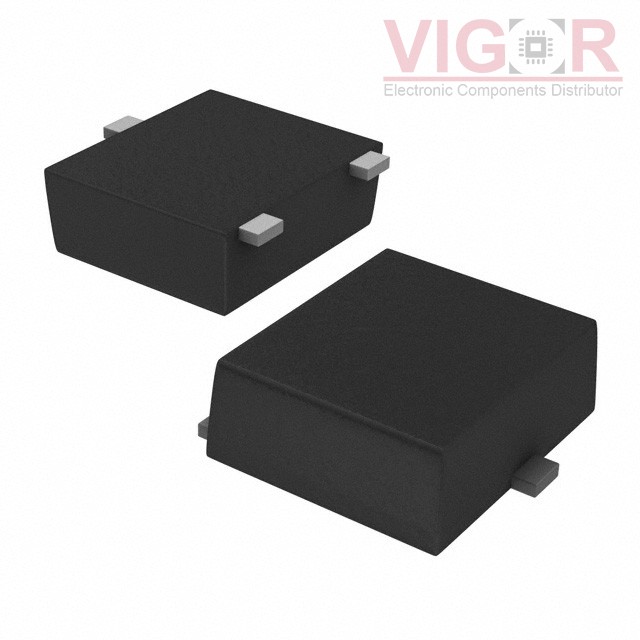

SSM3J134TU,LF

Part No :: SSM3J134TU,LF

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET P-CH 20V 3.2A UFM

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SSM3J134TU,LF PDF

Availability: 6251 pieces

Current price of SSM3J134TU,LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSM3J134TU,LF Specifications

Type	Description
Series:	U-MOSVI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	93mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	4.7 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	290 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	150°C
Mounting Type:	Surface Mount
Supplier Device Package:	UFM
Package / Case:	3-SMD, Flat Lead
