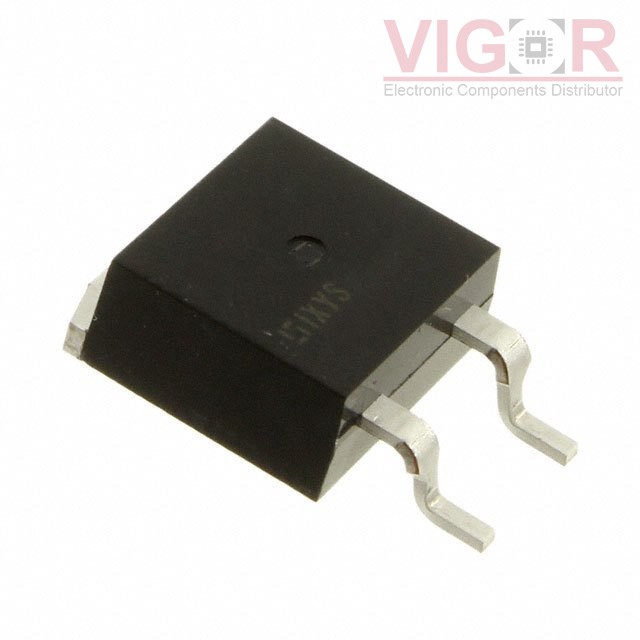

IXTA05N100HV

Part No :: IXTA05N100HV

Manufacturer: Wickmann / Littelfuse

Description: MOSFET N-CH 1000V 750MA TO263

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IXTA05N100HV PDF

Availability: 800 pieces

Current price of IXTA05N100HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IXTA05N100HV Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	750mA (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	17Ohm @ 375mA, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.8 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	260 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	40W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
