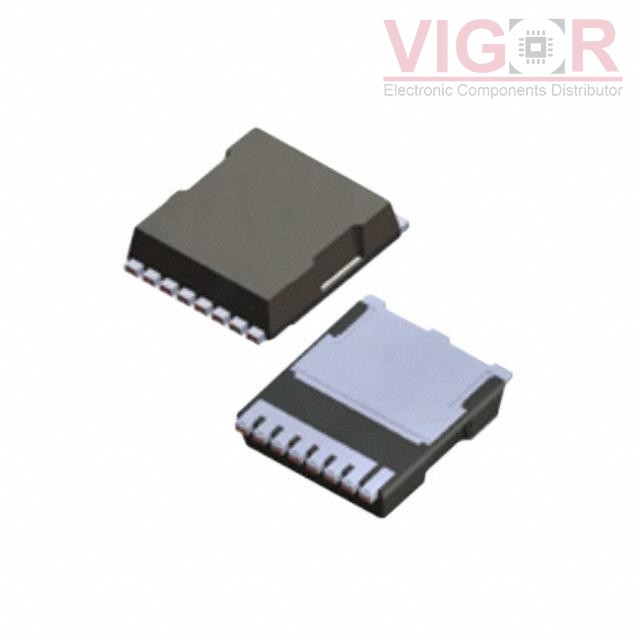

FDBL0110N60

Part No :: FDBL0110N60

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 60V 300A 8HPSOF

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDBL0110N60 PDF

Availability: 54 pieces

Current price of FDBL0110N60 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDBL0110N60 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	300A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.1mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	220 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	13650 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	429W (Tj)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-HPSOF
Package / Case:	8-PowerSFN

Please confirm the specifications of the products when ordering.
