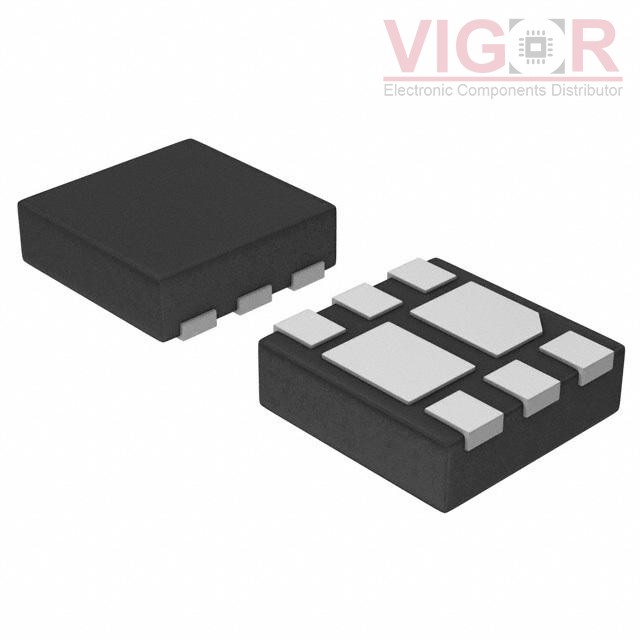

NTLUF4189NZTBG

Part No :: NTLUF4189NZTBG

Manufacturer: VIGOR

Description: MOSFET N-CH 30V 1.2A 6UDFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTLUF4189NZTBG PDF

Availability: 454750 pieces

Current price of NTLUF4189NZTBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLUF4189NZTBG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	200mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	3 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	95 pF @ 15 V
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-UDFN (1.6x1.6)
Package / Case:	6-UFDFN Exposed Pad
