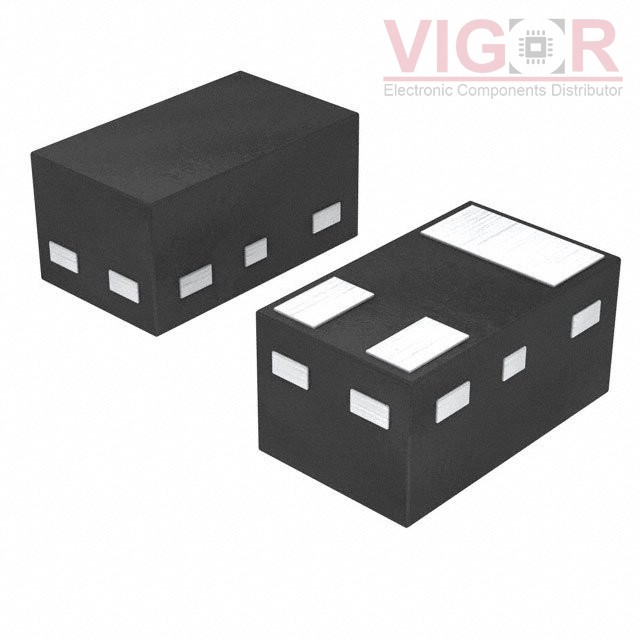

PMZB300XN,315

Part No :: PMZB300XN,315

Manufacturer: VIGOR

VIGOR # :: 2893656

Description: MOSFET N-CH 20V 1A DFN1006B-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PMZB300XN,315 PDF

Country of origin: -

Date code: -

PMZB300XN,315 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	380mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.94 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	51 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	360mW (Ta), 2.7W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN1006B-3
Package / Case:	3-XFDFN
