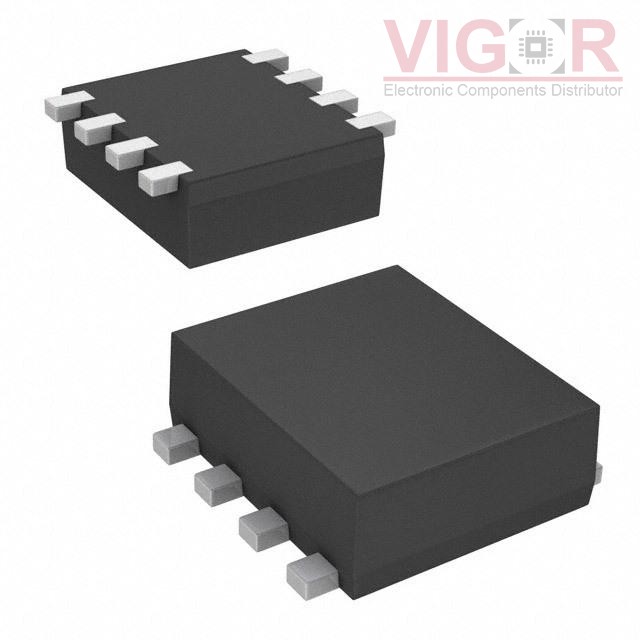

FK8V03020L

Part No :: FK8V03020L

Manufacturer: Panasonic

Description: MOSFET N CH 33V 14A WMINI8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FK8V03020L PDF

Availability: 0 pieces

Current price of FK8V03020L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FK8V03020L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	33 V
Current - Continuous Drain (Id) @ 25°C:	14A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4.6mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:	3V @ 2.2mA
Gate Charge (Qg) (Max) @ Vgs:	14 nC @ 4.5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	1500 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	WMini8-F1
Package / Case:	8-SMD, Flat Lead

Please confirm the specifications of the products when ordering.
