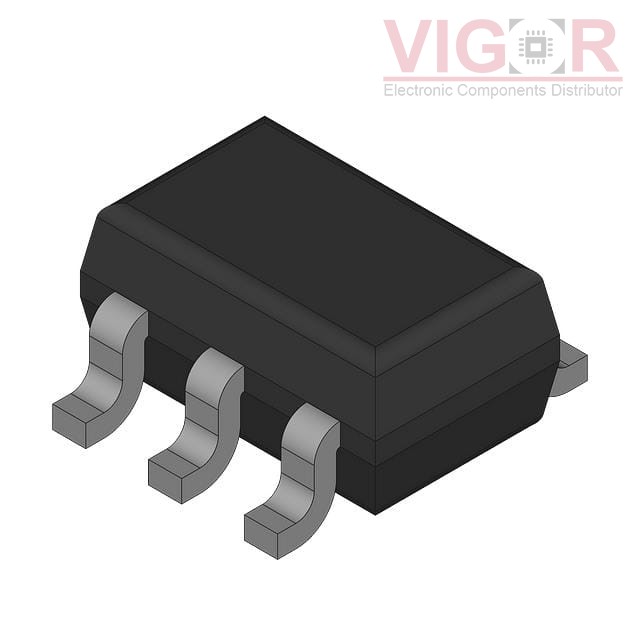

BSD816SNH6327XTSA1

Part No :: BSD816SNH6327XTSA1

Manufacturer: VIGOR

Description: MOSFET N-CH 20V 1.4A SOT363-6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: BSD816SNH6327XTSA1 PDF

Availability: 0 pieces

Current price of BSD816SNH6327XTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSD816SNH6327XTSA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 2.5V
Rds On (Max) @ Id, Vgs:	160mOhm @ 1.4A, 2.5V
Vgs(th) (Max) @ Id:	0.95V @ 3.7µA
Gate Charge (Qg) (Max) @ Vgs:	0.6 nC @ 2.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	180 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-SOT363-6
Package / Case:	6-VSSOP, SC-88, SOT-363

Please confirm the specifications of the products when ordering.
