FDP040N06

Part No :: FDP040N06

Manufacturer: VIGOR

VIGOR # :: 2894652

Description: MOSFET N-CH 60V 120A TO220-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDP040N06 PDF

Country of origin: -

Date code: -

FDP040N06 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	4mOhm @ 75A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	133 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	8.235 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	231W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220-3
Package / Case:	TO-220-3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 800

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.73~~	~~$1.73~~

Current price of FDP040N06 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

FQPF17P06

MOSFET P-CH 60V 12A TO220F

STW9N80K5

MOSFET N-CHANNEL 800V 7A TO247

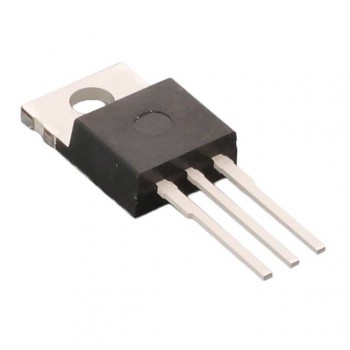

IPP65R115CFD7AAKSA1
