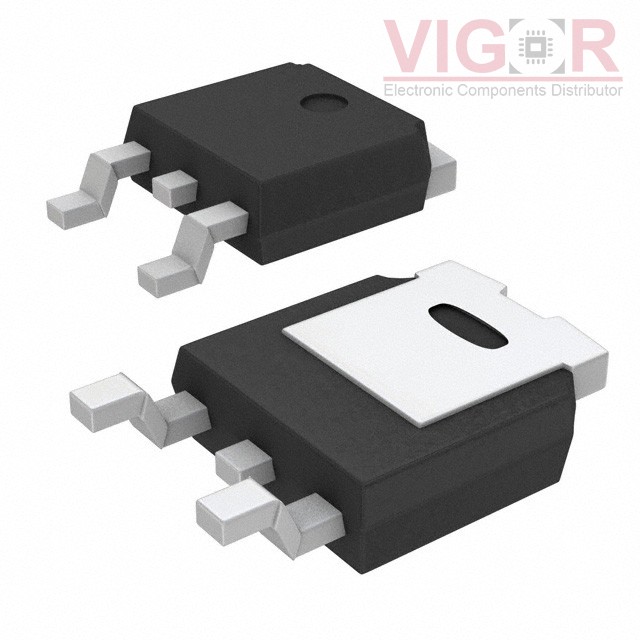

STD16N50M2

Part No :: STD16N50M2

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 500V 13A TO252

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STD16N50M2 PDF

Availability: 222 pieces

Current price of STD16N50M2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STD16N50M2 Specifications

Type	Description
Series:	MDmesh™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	500 V
Current - Continuous Drain (Id) @ 25°C:	13A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	280mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	19.5 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	710 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	110W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252, (D-Pak)
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
