IPL65R1K0C6SATMA1

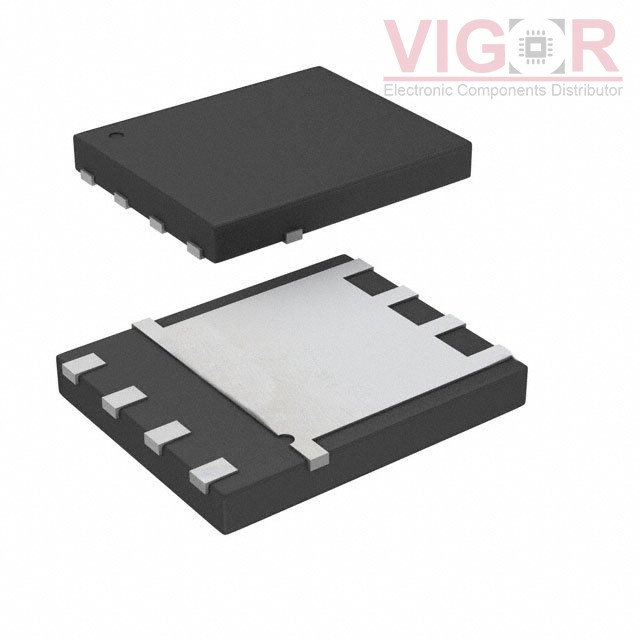

Image is for reference,
please contact us to get the real picture

Part No :: IPL65R1K0C6SATMA1

Manufacturer: VIGOR

Description: MOSFET N-CH 650V 4.2A THIN-PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPL65R1K0C6SATMA1 PDF

Availability: 4295 pieces

Unit Price: ~~$0.49000~~

Current price of IPL65R1K0C6SATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPL65R1K0C6SATMA1 Specifications

Type	Description
Series:	CoolMOS™ C6
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	4.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id:	3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:	15 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	328 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	34.7W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Thin-PAK (5x6)
Package / Case:	8-PowerTDFN

Please confirm the specifications of the products when ordering.
