APT77N60SC6

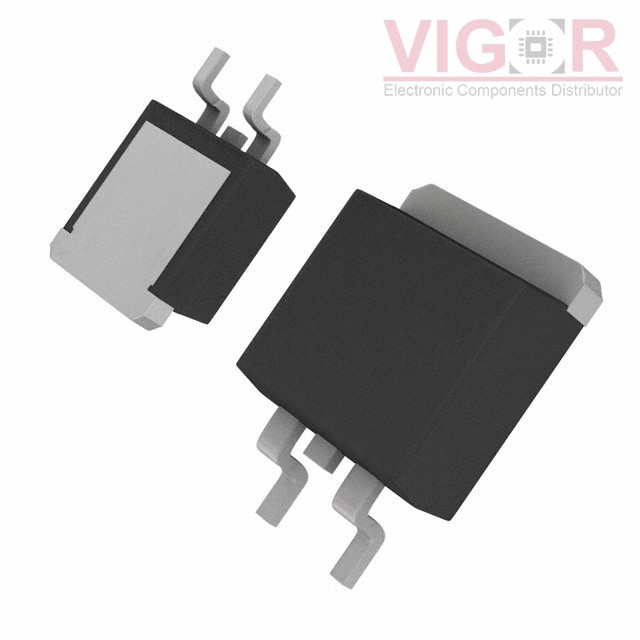

Image is for reference,
please contact us to get the real picture

Part No :: APT77N60SC6

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET N-CH 600V 77A D3PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: APT77N60SC6 PDF

Availability: 0 pieces

Unit Price: ~~$11.26000~~

Current price of APT77N60SC6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APT77N60SC6 Specifications

Type	Description
Series:	CoolMOS™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	77A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	41mOhm @ 44.4A, 10V
Vgs(th) (Max) @ Id:	3.6V @ 2.96mA
Gate Charge (Qg) (Max) @ Vgs:	260 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	13600 pF @ 25 V
FET Feature:	Super Junction
Power Dissipation (Max):	481W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D3Pak
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Please confirm the specifications of the products when ordering.
