IXTP86N20X4

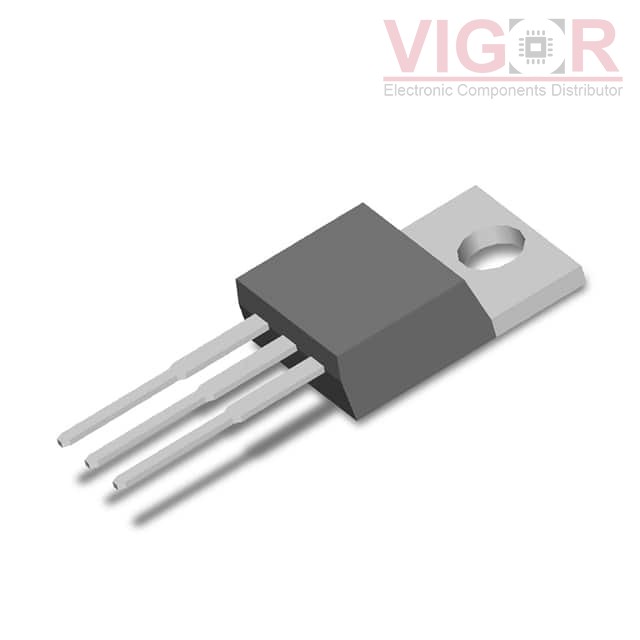

Image is for reference,
please contact us to get the real picture

Part No :: IXTP86N20X4

Manufacturer: Wickmann / Littelfuse

Description: MOSFET 200V 86A N-CH ULTRA TO220

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IXTP86N20X4 PDF

Availability: 1000 pieces

Unit Price: ~~$10.37000~~

Current price of IXTP86N20X4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IXTP86N20X4 Specifications

Type	Description
Series:	MOSFET™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	86A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	13mOhm @ 43A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	70 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2250 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	300W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220
Package / Case:	TO-220-3

Please confirm the specifications of the products when ordering.
