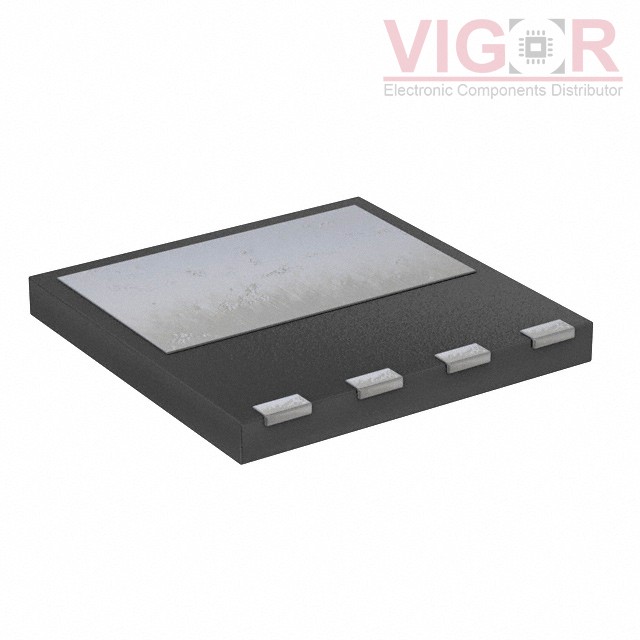

TK10V60W,LVQ

Part No :: TK10V60W,LVQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 600V 9.7A 4DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TK10V60W,LVQ PDF

Availability: 0 pieces

Current price of TK10V60W,LVQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TK10V60W,LVQ Specifications

Type	Description
Series:	DTMOSIV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	9.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	380mOhm @ 4.9A, 10V
Vgs(th) (Max) @ Id:	3.7V @ 500µA
Gate Charge (Qg) (Max) @ Vgs:	20 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	700 pF @ 300 V
FET Feature:	Super Junction
Power Dissipation (Max):	88.3W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-DFN-EP (8x8)
Package / Case:	4-VSFN Exposed Pad
