AO7417

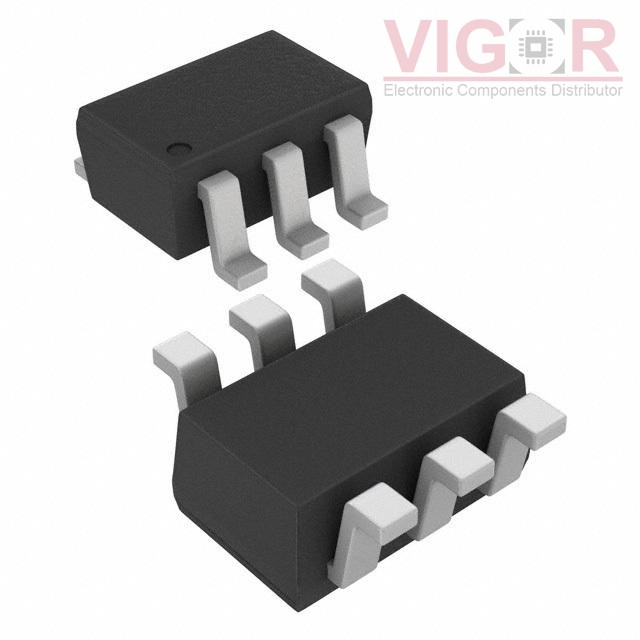

Image is for reference,
please contact us to get the real picture

Part No :: AO7417

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET P-CH 20V 1.9A SC70-6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AO7417 PDF

Availability: 0 pieces

Unit Price: ~~$0.16027~~

Current price of AO7417 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AO7417 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	80mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	11 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	745 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	570mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-70-6
Package / Case:	6-TSSOP, SC-88, SOT-363

Please confirm the specifications of the products when ordering.
