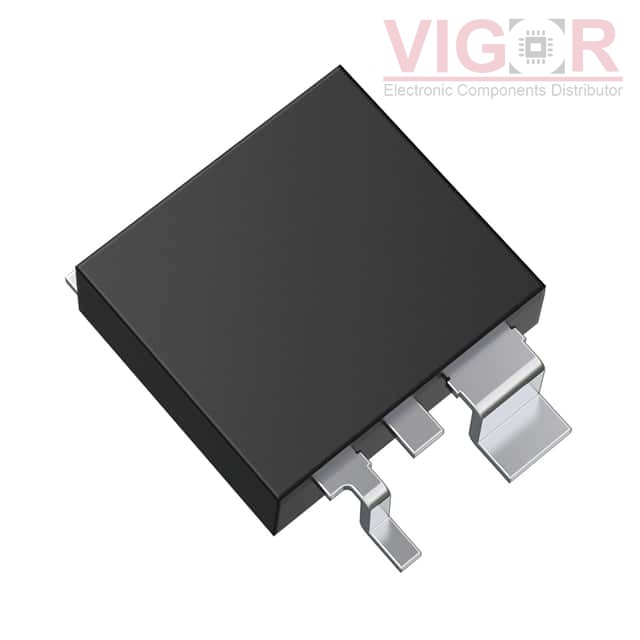

TJ200F04M3L,LXHQ

Part No :: TJ200F04M3L,LXHQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET P-CH 40V 200A TO220SM

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TJ200F04M3L,LXHQ PDF

Availability: 0 pieces

Current price of TJ200F04M3L,LXHQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TJ200F04M3L,LXHQ Specifications

Type	Description
Series:	U-MOSVI
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	200A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	1.8mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	460 nC @ 10 V
Vgs (Max):	+10V, -20V
Input Capacitance (Ciss) (Max) @ Vds:	1280 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	375W (Tc)
Operating Temperature:	175°C
Mounting Type:	Surface Mount
Supplier Device Package:	TO-220SM(W)
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
