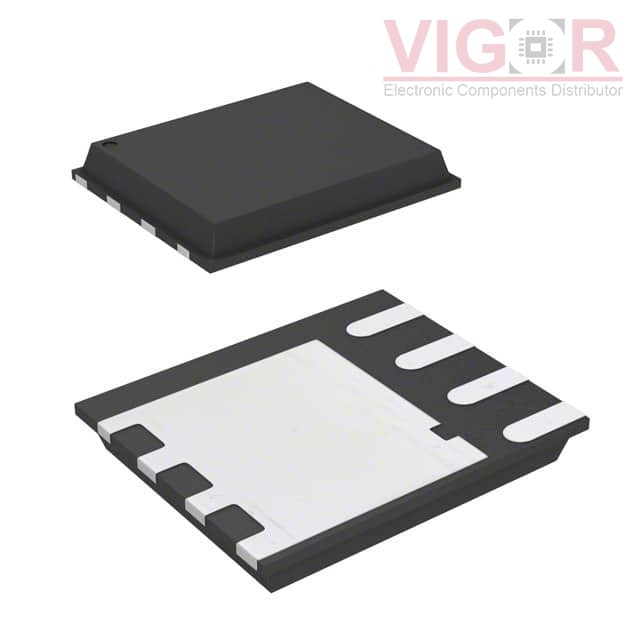

STL60NH3LL

Part No :: STL60NH3LL

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 30V 30A POWERFLAT

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STL60NH3LL PDF

Availability: 0 pieces

Current price of STL60NH3LL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STL60NH3LL Specifications

Type	Description
Series:	STripFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	8.5mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	1810 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	60W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerFlat™ (5x6)
Package / Case:	8-PowerVDFN
