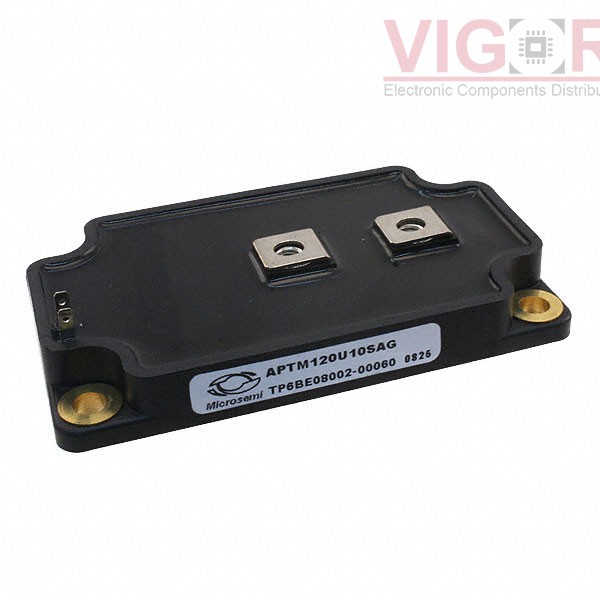

APTM120U10SAG

Image is for reference,
please contact us to get the real picture

Part No :: APTM120U10SAG

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET N-CH 1200V 116A SP6

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Sep 29 - Oct 03 2025

DataSheet: APTM120U10SAG PDF

Availability: 0 pieces

Unit Price: ~~$259.57000~~

Current price of APTM120U10SAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APTM120U10SAG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	116A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	120mOhm @ 58A, 10V
Vgs(th) (Max) @ Id:	5V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:	1100 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	28900 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3290W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	SP6
Package / Case:	SP6

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NTTFS4928NTAG

MOSFET N-CH 30V 7.3A/37A 8WDFN

HOT

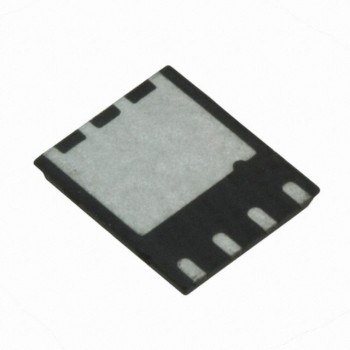

IRFH5006TRPBF
