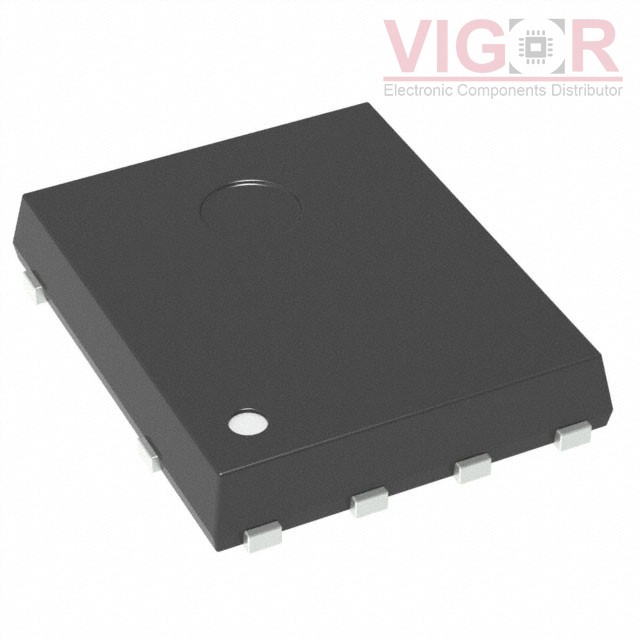

STL5N80K5

Part No :: STL5N80K5

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 800V 3A PWRFLAT VHV

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STL5N80K5 PDF

Availability: 0 pieces

Current price of STL5N80K5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STL5N80K5 Specifications

Type	Description
Series:	MDmesh™ K5
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	800 V
Current - Continuous Drain (Id) @ 25°C:	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.75Ohm @ 2A, 10V
Vgs(th) (Max) @ Id:	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	5 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	177 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	38W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerFlat™ (5x6) VHV
Package / Case:	8-PowerVDFN
