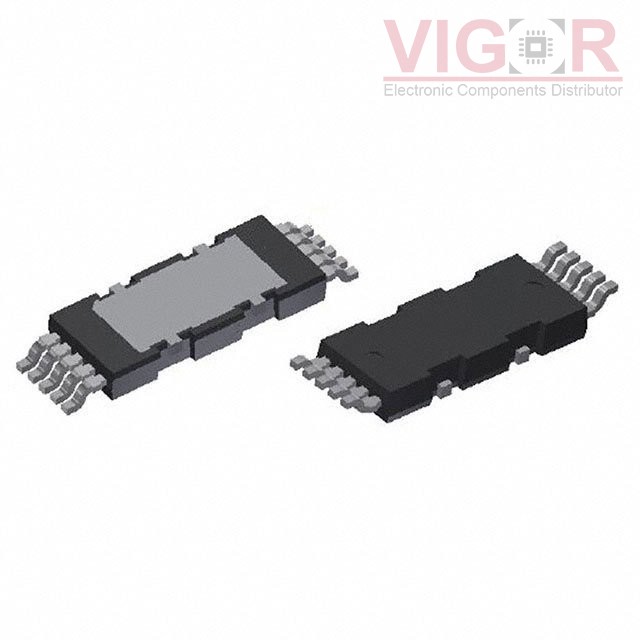

IPDD60R080G7XTMA1

Part No :: IPDD60R080G7XTMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 600V 29A HDSOP-10

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPDD60R080G7XTMA1 PDF

Availability: 1824 pieces

Current price of IPDD60R080G7XTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPDD60R080G7XTMA1 Specifications

Type	Description
Series:	CoolMOS™ G7
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	29A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	80mOhm @ 9.7A, 10V
Vgs(th) (Max) @ Id:	4V @ 490µA
Gate Charge (Qg) (Max) @ Vgs:	42 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1640 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	174W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-HDSOP-10-1
Package / Case:	10-PowerSOP Module
