RJK03M1DPA-00#J5A

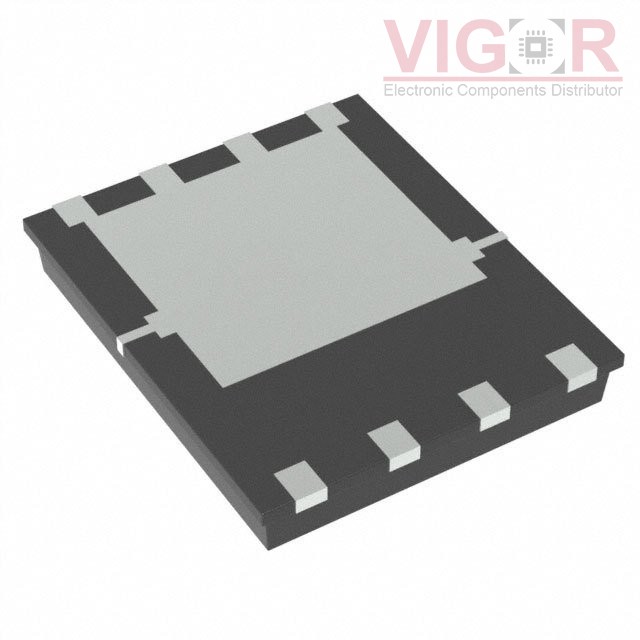

Image is for reference,
please contact us to get the real picture

Part No :: RJK03M1DPA-00#J5A

Manufacturer: Renesas Electronics America

Description: MOSFET N-CH 30V 50A 8WPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RJK03M1DPA-00#J5A PDF

Availability: 2912 pieces

Unit Price: ~~$2.04000~~

Current price of RJK03M1DPA-00#J5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RJK03M1DPA-00#J5A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	50A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	25 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4720 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	45W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-WPAK
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
