MCAC80N06Y-TP

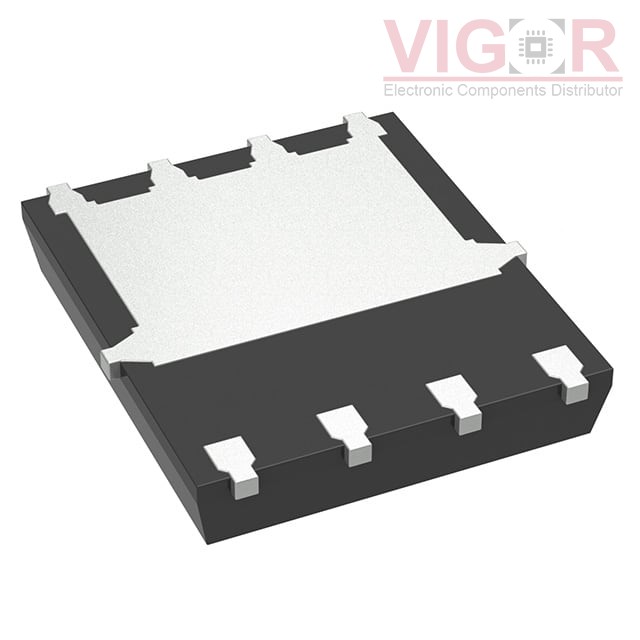

Image is for reference,
please contact us to get the real picture

Part No :: MCAC80N06Y-TP

Manufacturer: Micro Commercial Components (MCC)

Description: MOSFET N-CH 60V 80A DFN5060

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: MCAC80N06Y-TP PDF

Availability: 13642 pieces

Unit Price: ~~$1.02000~~

Current price of MCAC80N06Y-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCAC80N06Y-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4.2mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	67 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3980 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	85W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN5060
Package / Case:	8-PowerTDFN

Please confirm the specifications of the products when ordering.
