RSY160P05TL

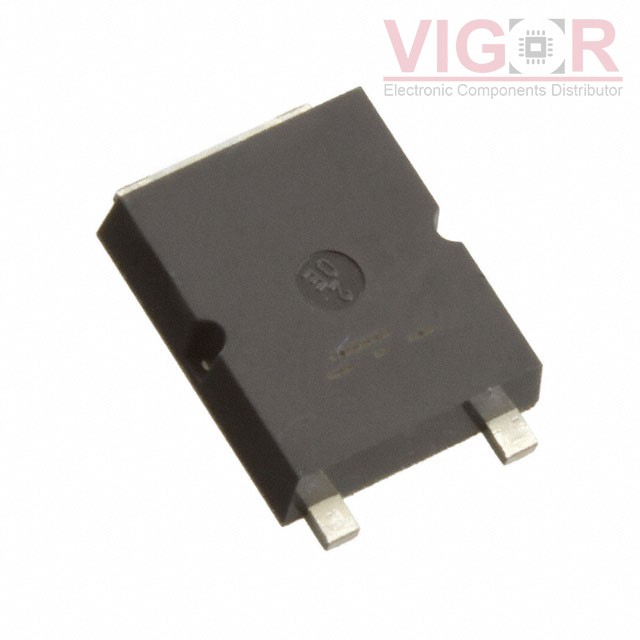

Image is for reference,
please contact us to get the real picture

Part No :: RSY160P05TL

Manufacturer: ROHM Semiconductor

Description: MOSFET P-CH 45V 16A TCPT3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RSY160P05TL PDF

Availability: 2910 pieces

Unit Price: ~~$1.43000~~

Current price of RSY160P05TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RSY160P05TL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	45 V
Current - Continuous Drain (Id) @ 25°C:	16A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V, 10V
Rds On (Max) @ Id, Vgs:	50mOhm @ 16A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	25.5 nC @ 5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2150 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	20W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TCPT3
Package / Case:	3-SMD, Flat Lead

Please confirm the specifications of the products when ordering.
