BSZ520N15NS3GATMA1

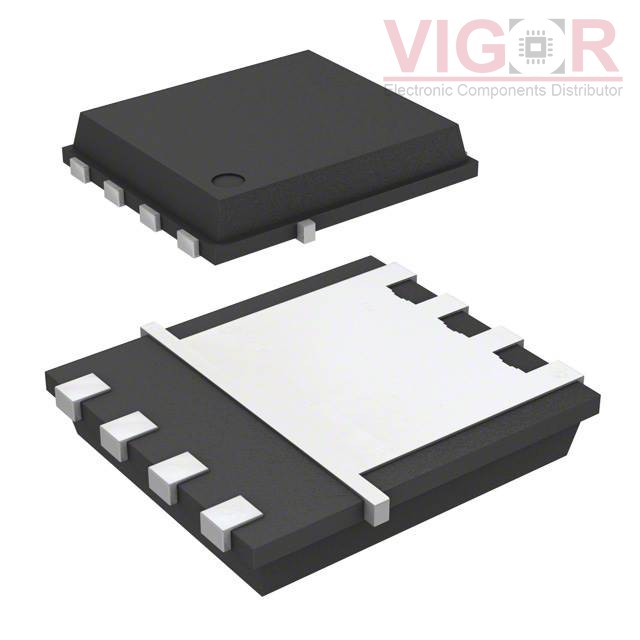

Image is for reference,
please contact us to get the real picture

Part No :: BSZ520N15NS3GATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 150V 21A 8TSDSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: BSZ520N15NS3GATMA1 PDF

Availability: 30594 pieces

Unit Price: ~~$1.46000~~

Current price of BSZ520N15NS3GATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSZ520N15NS3GATMA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	150 V
Current - Continuous Drain (Id) @ 25°C:	21A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	8V, 10V
Rds On (Max) @ Id, Vgs:	52mOhm @ 18A, 10V
Vgs(th) (Max) @ Id:	4V @ 35µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	890 pF @ 75 V
FET Feature:	-
Power Dissipation (Max):	57W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSON-8
Package / Case:	8-PowerTDFN
