NTD4863N-35G

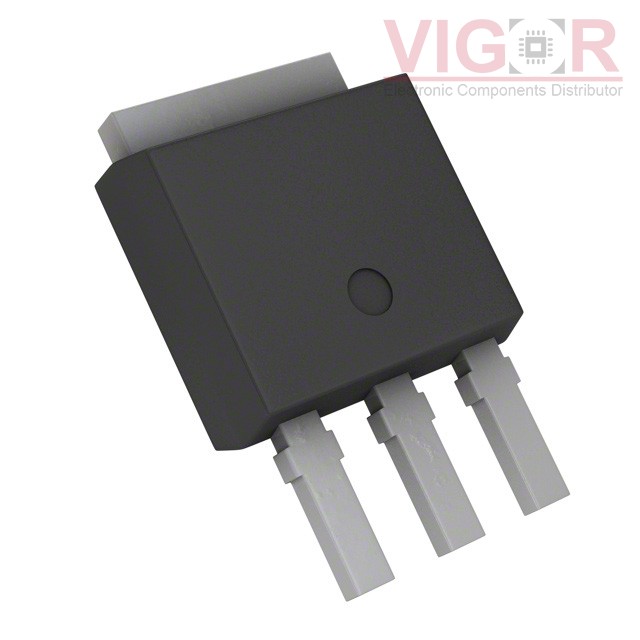

Image is for reference,
please contact us to get the real picture

Part No :: NTD4863N-35G

Manufacturer: VIGOR

Description: MOSFET N-CH 25V 9.2A/49A IPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTD4863N-35G PDF

Availability: 177225 pieces

Unit Price: ~~$0.27000~~

Current price of NTD4863N-35G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTD4863N-35G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	9.2A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	9.3mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	13.5 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	990 pF @ 12 V
FET Feature:	-
Power Dissipation (Max):	1.27W (Ta), 36.6W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	I-PAK
Package / Case:	TO-251-3 Stub Leads, IPak

Please confirm the specifications of the products when ordering.
