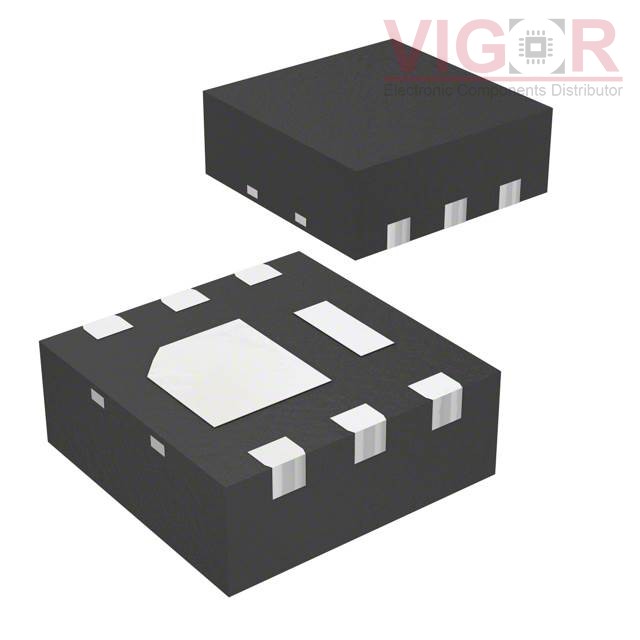

STL4P3LLH6

Part No :: STL4P3LLH6

Manufacturer: STMicroelectronics

Description: MOSFET P-CH 30V 4A POWERFLAT

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STL4P3LLH6 PDF

Availability: 5215 pieces

Current price of STL4P3LLH6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STL4P3LLH6 Specifications

Type	Description
Series:	DeepGATE™, STripFET™ H6
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	56mOhm @ 2A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	639 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerFlat™ (2x2)
Package / Case:	6-PowerWDFN
