APT7M120S

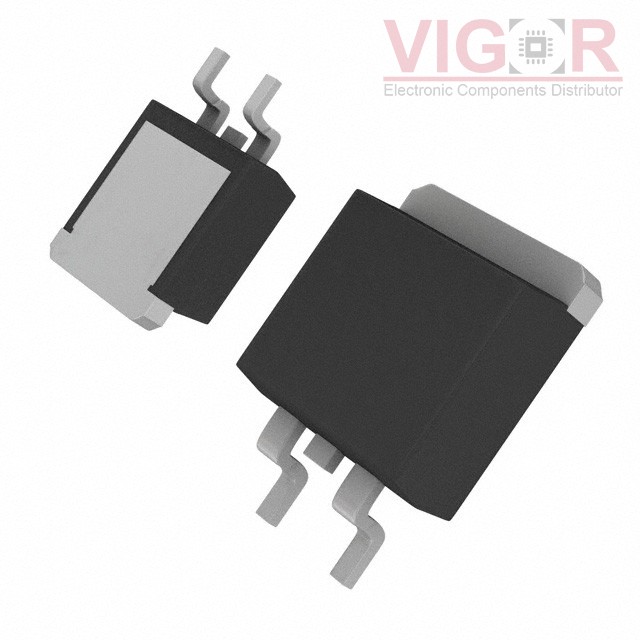

Image is for reference,
please contact us to get the real picture

Part No :: APT7M120S

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET N-CH 1200V 8A D3PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: APT7M120S PDF

Availability: 0 pieces

Unit Price: ~~$5.28000~~

Current price of APT7M120S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APT7M120S Specifications

Type	Description
Series:	POWER MOS 8™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2.1Ohm @ 3A, 10V
Vgs(th) (Max) @ Id:	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	80 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	2565 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	335W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D3Pak
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Please confirm the specifications of the products when ordering.
