NDT452AP

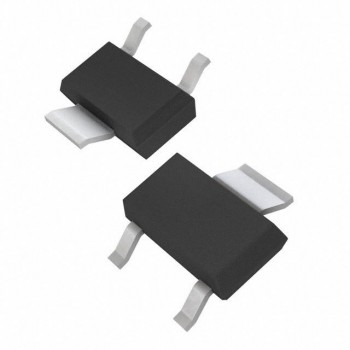

Image is for reference,
please contact us to get the real picture

Part No :: NDT452AP

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET P-CH 30V 5A SOT-223-4

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NDT452AP PDF

Availability: 5964 pieces

Unit Price: ~~$0.96000~~

Current price of NDT452AP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NDT452AP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	65mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	30 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	690 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta)
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223-4
Package / Case:	TO-261-4, TO-261AA

Please confirm the specifications of the products when ordering.
