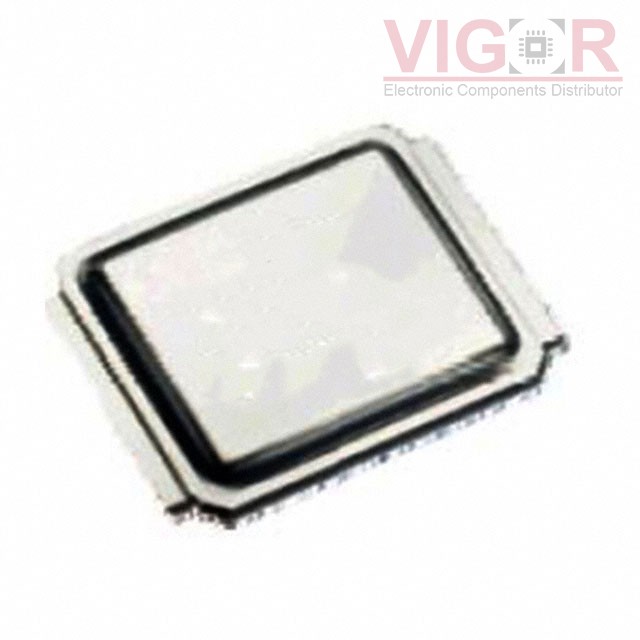

AUIRF7736M2TR

Part No :: AUIRF7736M2TR

Manufacturer: VIGOR

Description: MOSFET N-CH 40V 22A/108A DIRECT

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AUIRF7736M2TR PDF

Availability: 13457 pieces

Current price of AUIRF7736M2TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AUIRF7736M2TR Specifications

Type	Description
Series:	HEXFET®
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	22A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	3mOhm @ 65A, 10V
Vgs(th) (Max) @ Id:	4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:	108 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4.267 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 63W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DIRECTFET™ M4
Package / Case:	DirectFET™ Isometric M4
