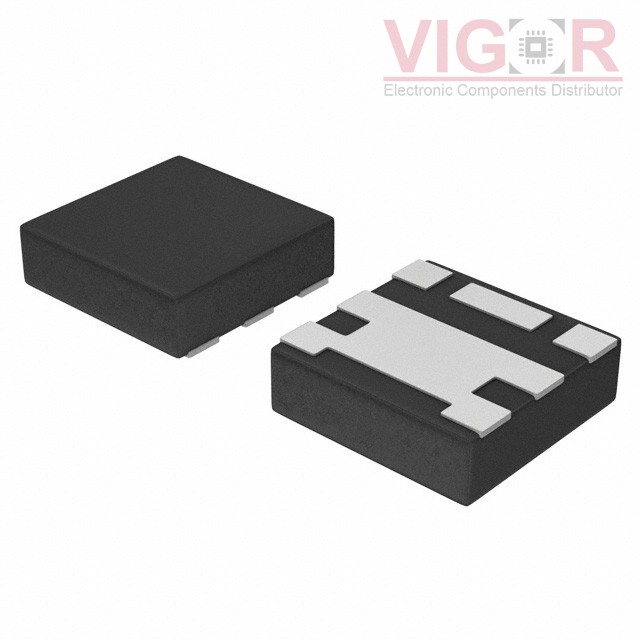

DMP1245UFCL-7

Part No :: DMP1245UFCL-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET P-CH 12V 6.6A X1-DFN1616

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMP1245UFCL-7 PDF

Availability: 4916 pieces

Current price of DMP1245UFCL-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMP1245UFCL-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	6.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	29mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	26.1 nC @ 8 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	1357.4 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	613mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X1-DFN1616-6 (Type E)
Package / Case:	6-PowerUFDFN
