TPH3202PD

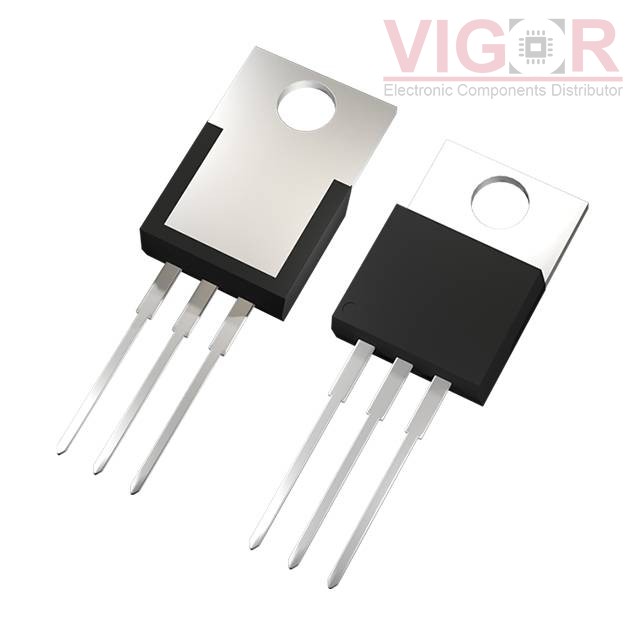

Image is for reference,
please contact us to get the real picture

Part No :: TPH3202PD

Manufacturer: Transphorm

Description: GANFET N-CH 600V 9A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPH3202PD PDF

Availability: 0 pieces

Unit Price: ~~$10.56000~~

Current price of TPH3202PD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPH3202PD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	350mOhm @ 5.5A, 8V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.3 nC @ 4.5 V
Vgs (Max):	±18V
Input Capacitance (Ciss) (Max) @ Vds:	760 pF @ 480 V
FET Feature:	-
Power Dissipation (Max):	65W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3

Please confirm the specifications of the products when ordering.
