RS1G260MNTB

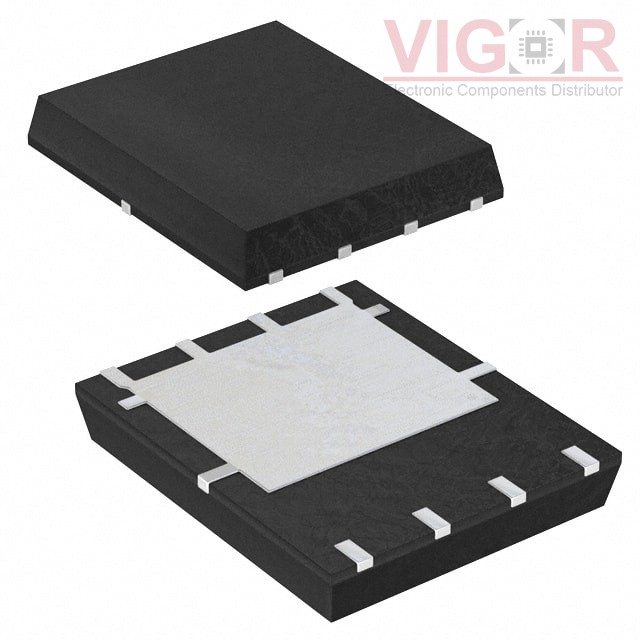

Image is for reference,
please contact us to get the real picture

Part No :: RS1G260MNTB

Manufacturer: ROHM Semiconductor

Description: MOSFET N-CH 40V 26A 8HSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RS1G260MNTB PDF

Availability: 44 pieces

Unit Price: ~~$1.81000~~

Current price of RS1G260MNTB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RS1G260MNTB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	26A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	3.3mOhm @ 26A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	44 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2988 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta), 35W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-HSOP
Package / Case:	8-PowerTDFN

Please confirm the specifications of the products when ordering.
