CSD17313Q2Q1

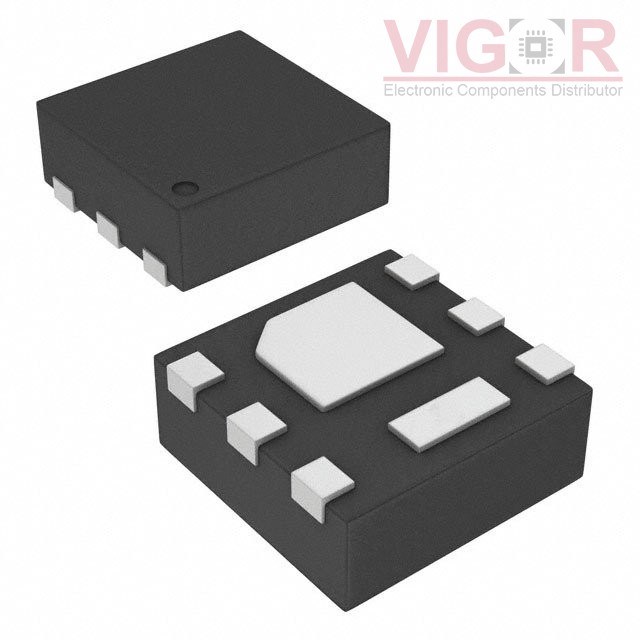

Image is for reference,
please contact us to get the real picture

Part No :: CSD17313Q2Q1

Manufacturer: Texas Instruments

Description: MOSFET N-CH 30V 5A 6WSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD17313Q2Q1 PDF

Availability: 4499 pieces

Unit Price: ~~$0.75000~~

Current price of CSD17313Q2Q1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD17313Q2Q1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	3V, 8V
Rds On (Max) @ Id, Vgs:	30mOhm @ 4A, 8V
Vgs(th) (Max) @ Id:	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.7 nC @ 4.5 V
Vgs (Max):	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds:	340 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-WSON (2x2)
Package / Case:	6-WDFN Exposed Pad

Please confirm the specifications of the products when ordering.
