ISC017N04NM5ATMA1

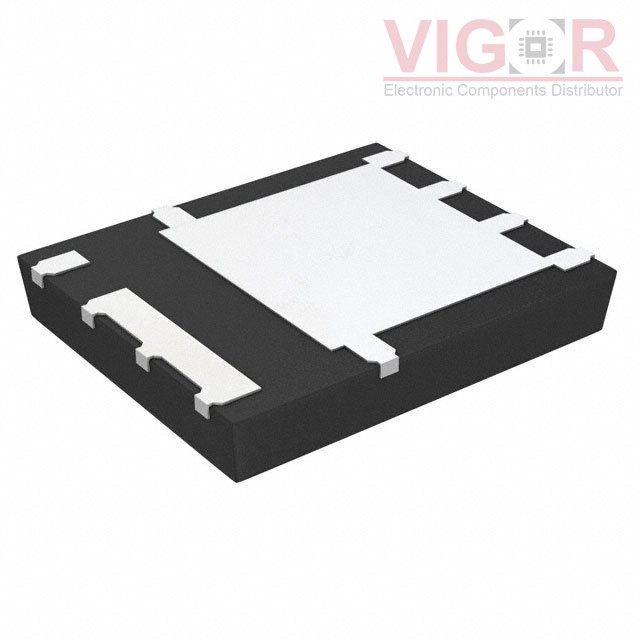

Image is for reference,
please contact us to get the real picture

Part No :: ISC017N04NM5ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 40V 193A TDSON-8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: ISC017N04NM5ATMA1 PDF

Availability: 0 pieces

Unit Price: ~~$0.92400~~

Current price of ISC017N04NM5ATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ISC017N04NM5ATMA1 Specifications

Type	Description
Series:	OptiMOS™5
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	31A (Ta), 193A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	7V, 10V
Rds On (Max) @ Id, Vgs:	1.7mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	3.4V @ 60µA
Gate Charge (Qg) (Max) @ Vgs:	67 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4800 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta), 115W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8 FL
Package / Case:	8-PowerTDFN
