C3M0120100K

Part No :: C3M0120100K

Manufacturer: Wolfspeed - a Cree company

VIGOR # :: 2898470

Description: SICFET N-CH 1000V 22A TO247-4L

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: C3M0120100K PDF

Country of origin: -

Date code: -

C3M0120100K Specifications

Type	Description
Series:	C3M™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	155mOhm @ 15A, 15V
Vgs(th) (Max) @ Id:	3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs:	21.5 nC @ 15 V
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	350 pF @ 600 V
FET Feature:	-
Power Dissipation (Max):	83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-4L
Package / Case:	TO-247-4

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 208

Shipped from

HK warehouse

Expected Shipping Date

Apr 03 - Apr 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.2000~~	~~$8.20~~

Current price of C3M0120100K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TK20S06K3L(T6L1,NQ

MOSFET N-CH 60V 20A DPAK

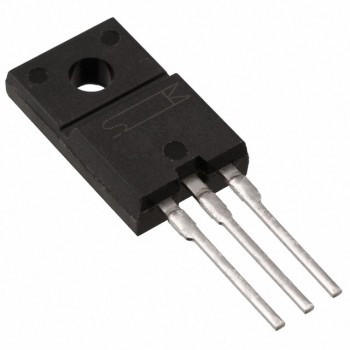

FKV575
