G3R160MT12J

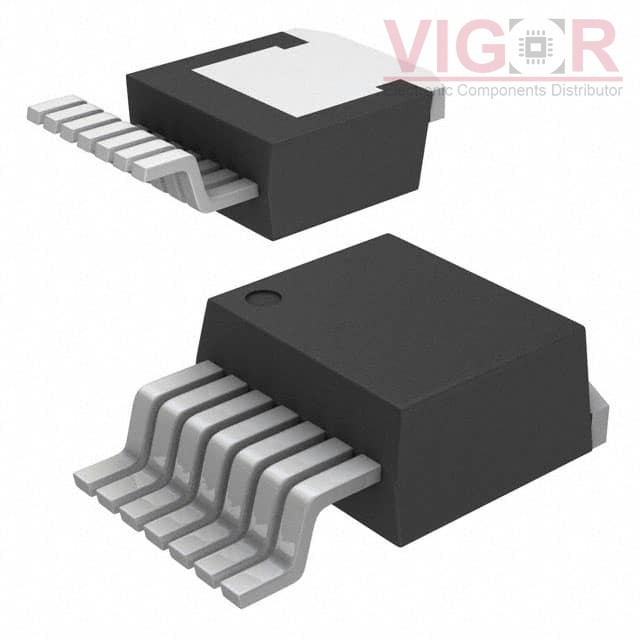

Image is for reference,
please contact us to get the real picture

Part No :: G3R160MT12J

Manufacturer: GeneSiC Semiconductor

Description: SIC MOSFET N-CH 22A TO263-7

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: G3R160MT12J PDF

Availability: 438 pieces

Unit Price: ~~$7.73000~~

Current price of G3R160MT12J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

G3R160MT12J Specifications

Type	Description
Series:	G3R™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	192mOhm @ 10A, 15V
Vgs(th) (Max) @ Id:	2.69V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:	28 nC @ 15 V
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	730 pF @ 800 V
FET Feature:	-
Power Dissipation (Max):	128W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Please confirm the specifications of the products when ordering.
